An implementation of the RecoveryPointAdapter interface that is meant to act as a wrapper around another recovery point adapter instance, delegating periodic updates to its wrapped adapter on an asynchronous update thread (which this instance starts). The intent is to decouple recovery state updates from message discards on a bookmark replay subscriptions so that fast paced subscriptions don't cause a rate of updates that consume too much bandwidth or overwhelm recovery point adapter implementations that use slower storage (slowing message discards). More...

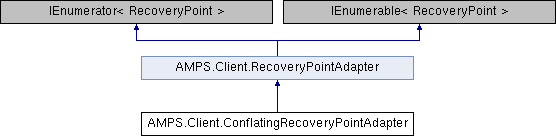

Inheritance diagram for AMPS.Client.ConflatingRecoveryPointAdapter:

Public Member Functions
delegate void	ExceptionListener (Exception e)
	A place to report exceptions in the background thread More...

	ConflatingRecoveryPointAdapter (RecoveryPointAdapter adapter_)
	Creates a new ConflatingRecoveryPointAdapter. More...

	ConflatingRecoveryPointAdapter (RecoveryPointAdapter adapter_, int updateThreshold_, long timeoutMillis_, int updateIntervalMillis_)
	Creates a new ConflatingRecoveryPointAdapter. More...

void	setExceptionListener (ExceptionListener exceptionListener)
	Sets the ExceptionListener instance used for communicating absorbed exceptions. More...

void	update (RecoveryPoint recoveryPoint_)
	Conflate an update to the newest recovery point. It ensures that updates are correctly handled for both repeat and new subscription data. More...

void	purge ()
	This method is responsible for removing or purging all recovery point information from the instance(self) and from the wrapped adapter. More...

void	purge (Field subId_)
	Remove all recovery point information for a given sub id. More...

void	close ()
	Force all updates to the underlying adapter, then close it. More...

IEnumerator< RecoveryPoint >	GetEnumerator ()
	Return an enumerator over recovered RecoveryPoints. More...

bool	MoveNext ()
	IEnumerator move to next item. More...

void	Reset ()
	IEnumerator reset - not implemented. More...

void	updateAll ()
	Force all held updates to be flushed to the underlying adapter. More...

Protected Attributes
RecoveryPointAdapter	_adapter = null
	The wrapped recovery point adapter instance we delegate to. More...

int	_updateThreshold = 10
	The threshold used to determine if a subscription is due for an update operation, based upon whether the subscription's update count exceeds this threshold since the last update operation. More...

long	_timeoutMillis = 2000
	The threshold used to determine if a subscription is due for an update operation, based upon whether this many milliseconds have elapsed since the last update operation. More...

int	_updateIntervalMillis = 2000
	The amount of time the update thread can sit idle between checking for timeouts and sending any pending updates. More...

Properties
RecoveryPoint	Current `[get]`
	The current RecoveryPoint from the underlying Adapter. More...

Detailed Description

An implementation of the RecoveryPointAdapter interface that is meant to act as a wrapper around another recovery point adapter instance, delegating periodic updates to its wrapped adapter on an asynchronous update thread (which this instance starts). The intent is to decouple recovery state updates from message discards on a bookmark replay subscriptions so that fast paced subscriptions don't cause a rate of updates that consume too much bandwidth or overwhelm recovery point adapter implementations that use slower storage (slowing message discards).

Constructor & Destructor Documentation

◆ ConflatingRecoveryPointAdapter() [1/2]

AMPS.Client.ConflatingRecoveryPointAdapter.ConflatingRecoveryPointAdapter ( RecoveryPointAdapter adapter_ )

inline

Creates a new ConflatingRecoveryPointAdapter.

Parameters

adapter_ The RecoveryPointAdapter doing the actual updates and recovery.

◆ ConflatingRecoveryPointAdapter() [2/2]

AMPS.Client.ConflatingRecoveryPointAdapter.ConflatingRecoveryPointAdapter	(	RecoveryPointAdapter	adapter_,
		int	updateThreshold_,
		long	timeoutMillis_,
		int	updateIntervalMillis_
	)

inline

Creates a new ConflatingRecoveryPointAdapter.

Parameters

adapter_

The RecoveryPointAdapter doing the actual updates and recovery.

Parameters

updateThreshold_

The maximum number of updates to a single subId before a conflated update is delivered.

Parameters

timeoutMillis_

The maximum amount of time in ms between conflated updates for each subId.

Parameters

updateIntervalMillis_ The maximum amount of time in ms the update thread can sit idle before checking for timeouts.

Member Function Documentation

◆ close()

void AMPS.Client.ConflatingRecoveryPointAdapter.close ( )

inline

Force all updates to the underlying adapter, then close it.

Implements AMPS.Client.RecoveryPointAdapter.

◆ ExceptionListener()

delegate void AMPS.Client.ConflatingRecoveryPointAdapter.ExceptionListener ( Exception e )

A place to report exceptions in the background thread

◆ GetEnumerator()

IEnumerator<RecoveryPoint> AMPS.Client.ConflatingRecoveryPointAdapter.GetEnumerator ( )

inline

Return an enumerator over recovered RecoveryPoints.

◆ MoveNext()

bool AMPS.Client.ConflatingRecoveryPointAdapter.MoveNext ( )

inline

IEnumerator move to next item.

◆ purge() [1/2]

void AMPS.Client.ConflatingRecoveryPointAdapter.purge ( )

inline

This method is responsible for removing or purging all recovery point information from the instance(self) and from the wrapped adapter.

Implements AMPS.Client.RecoveryPointAdapter.

◆ purge() [2/2]

void AMPS.Client.ConflatingRecoveryPointAdapter.purge ( Field subId_ )

inline

Remove all recovery point information for a given sub id.

Implements AMPS.Client.RecoveryPointAdapter.

◆ Reset()

void AMPS.Client.ConflatingRecoveryPointAdapter.Reset ( )

inline

IEnumerator reset - not implemented.

◆ setExceptionListener()

void AMPS.Client.ConflatingRecoveryPointAdapter.setExceptionListener ( ExceptionListener exceptionListener )

inline

Sets the ExceptionListener instance used for communicating absorbed exceptions.

Parameters

exceptionListener The exception listener instance to invoke for exceptions.

◆ update()

void AMPS.Client.ConflatingRecoveryPointAdapter.update ( RecoveryPoint recoveryPoint_ )

inline

Conflate an update to the newest recovery point. It ensures that updates are correctly handled for both repeat and new subscription data.

Parameters

recoveryPoint_ The newest recovery point to save.

Implements AMPS.Client.RecoveryPointAdapter.

◆ updateAll()

void AMPS.Client.ConflatingRecoveryPointAdapter.updateAll ( )

inline

Force all held updates to be flushed to the underlying adapter.

Member Data Documentation

◆ _adapter

RecoveryPointAdapter AMPS.Client.ConflatingRecoveryPointAdapter._adapter = null

protected

The wrapped recovery point adapter instance we delegate to.

◆ _timeoutMillis

long AMPS.Client.ConflatingRecoveryPointAdapter._timeoutMillis = 2000

protected

The threshold used to determine if a subscription is due for an update operation, based upon whether this many milliseconds have elapsed since the last update operation.

◆ _updateIntervalMillis

int AMPS.Client.ConflatingRecoveryPointAdapter._updateIntervalMillis = 2000

protected

The amount of time the update thread can sit idle between checking for timeouts and sending any pending updates.

◆ _updateThreshold

int AMPS.Client.ConflatingRecoveryPointAdapter._updateThreshold = 10

protected

The threshold used to determine if a subscription is due for an update operation, based upon whether the subscription's update count exceeds this threshold since the last update operation.

Property Documentation

◆ Current

RecoveryPoint AMPS.Client.ConflatingRecoveryPointAdapter.Current

get

The current RecoveryPoint from the underlying Adapter.

The documentation for this class was generated from the following file:

AMPS.Client/ConflatingRecoveryPointAdapter.cs
