BlockPublishStore is a base class that implements the Store interface. It is designed for publish store implementations, allowing messages to be stored and managed efficiently. As messages are discarded, space in that buffer is marked "free" for future store operations. If messages are stored faster than they are published, the buffer is re-sized to create more capacity. More...

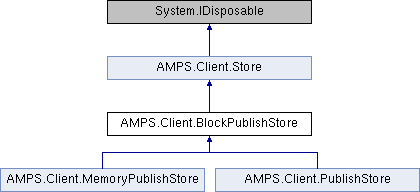

Inheritance diagram for AMPS.Client.BlockPublishStore:

Classes
class	Block

interface	Buffer
	Interface which is used to hold the BlockPublishStore buffer data. More...

class	ByteSequence
	A simple wrapper object around a byte array that allows a sub-range to be specified using its offset and length properties. More...

Public Member Functions
virtual void	Dispose ()
	Performs implementation-defined tasks associated with freeing, releasing, or resetting resources. This method has no effect for the BlockPublishStore class. Publish store implementations that sub-class this class, should override it as needed. More...

void	store (Message m)
	Stores a message in the BlockPublishStore. More...

void	store (Message m, Boolean assignSequence)
	Internal utility method for storing messages in the BlockPublishStore. More...

virtual void	discardUpTo (ulong sequence)
	Discard messages in the store, up to and including the message specified by the passed in sequnence number. This is called by the client when it's notified a message is persisted on the server. The space used by discarded messages is made available for reuse by later messages. More...

ulong	getLastPersisted ()
	Gets the last persisted sequence number More...

ulong	getLowestUnpersisted ()
	Gets the lowest unpersisted sequence number. More...

ulong	getHighestUnpersisted ()
	Gets the highest unpersisted sequence number. More...

void	setMessage (Message message)
	Used internally by the Client to give the store a Message implementing the correct protocol for the connection. This Message instance is also used for replay operations. More...

virtual void	replay (StoreReplayer replayer)
	Implemented to replay unpersisted messages from the stored blocks onto the provided StoreReplayer. More...

bool	replaySingle (StoreReplayer replayer, ulong sequence)
	Implemented to find the unpersisted message with the specified sequence among the stored blocks, and replay it onto the provided StoreReplayer. Checks if the specified sequence is less than or equal to the stored metadata block's sequence number. More...

long	unpersistedCount ()
	Returns the count of unpersisted messages in the store. This count represents the number of messages that have been received but not yet persisted. More...

void	flush ()
	Wait for the store to discard everything that has been stored up to the point in time when flush is called, then return. More...

void	flush (int timeout)
	Wait for the store to discard everything that has been stored up to the point in time when flush is called, then return. Throw an exception if this is not completed in the number of milliseconds specified by the timeout. More...

void	setResizeHandler (PublishStoreResizeHandler handler)
	Set the resize handler for the publish store. An implementation can call the resize handler in the event that it needs to grow the size of the publish store. More...

void	setErrorOnPublishGap (bool errorOnPublishGap_)
	Set if a PublishStoreGapException should be thrown by the Store if there is an attempt to call `discardUpTo` with a sequence number lower than the last persisted sequence number. This could occur during logon after a failover event if the new server was not current on messages due to being an async replication destination. More...

virtual bool	getErrorOnPublishGap ()
	Get if a PublishStoreGapException can be thrown by the Store if there is an attempt to call `discardUpTo` with a sequence number lower than the last persisted sequence number. This could occur during logon after a failover event if the new server was not current on messages due to being an async replication destination. More...

Protected Member Functions
	BlockPublishStore (Buffer buffer, int blocksPerRealloc, bool errorOnPublishGap_=false)
	Initializes a new instance of the BlockPublishStore class with the specified buffer and block allocation configuration. More...

	BlockPublishStore (Buffer buffer, bool useCrc=false, int blocksPerRealloc=10000, bool errorOnPublishGap_=false)
	Initializes a new instance of the BlockPublishStore class with the specified buffer. More...

void	recover ()
	Recovers the state of the BlockPublishStore by reconstructing the used and free lists from the stored blocks in the buffer. More...

void	growFreeListIfEmpty ()
	Ensures that the free list has at least one block available for use. More...

Protected Attributes
bool	_errorOnPublishGap = false

PublishStoreResizeHandler	_resizeHandler = null

Buffer	_buffer

Utilities.CRC32	_crc = null

Detailed Description

BlockPublishStore is a base class that implements the Store interface. It is designed for publish store implementations, allowing messages to be stored and managed efficiently. As messages are discarded, space in that buffer is marked "free" for future store operations. If messages are stored faster than they are published, the buffer is re-sized to create more capacity.

Constructor & Destructor Documentation

◆ BlockPublishStore() [1/2]

AMPS.Client.BlockPublishStore.BlockPublishStore	(	Buffer	buffer,
		int	blocksPerRealloc,
		bool	errorOnPublishGap_ = `false`
	)

inlineprotected

Initializes a new instance of the BlockPublishStore class with the specified buffer and block allocation configuration.

Parameters

buffer	The buffer used for storing messages.
blocksPerRealloc	The number of blocks per reallocation, determining the block allocation during buffer resizing.
errorOnPublishGap_	Indicates if an excpetion should be thrown if discardUpTo is called with an index below the last persisted.

◆ BlockPublishStore() [2/2]

AMPS.Client.BlockPublishStore.BlockPublishStore	(	Buffer	buffer,
		bool	useCrc = `false`,
		int	blocksPerRealloc = `10000`,
		bool	errorOnPublishGap_ = `false`
	)

inlineprotected

Initializes a new instance of the BlockPublishStore class with the specified buffer.

Parameters

buffer	The buffer used for storing messages.
useCrc	A boolean flag indicating whether to use CRC (Cyclic Redundancy Check).
blocksPerRealloc	The number of blocks per reallocation, determining the block allocation during buffer resizing.
errorOnPublishGap_	Indicates if an excpetion should be thrown if discardUpTo is called with an index below the last persisted.

Member Function Documentation

◆ discardUpTo()

virtual void AMPS.Client.BlockPublishStore.discardUpTo ( ulong sequence )

inlinevirtual

Discard messages in the store, up to and including the message specified by the passed in sequnence number. This is called by the client when it's notified a message is persisted on the server. The space used by discarded messages is made available for reuse by later messages.

Parameters

sequence The highest sequence number of the messages that can be safely discarded. The specified message and all prior messages are removed from the store.

Exceptions

StoreException If an error occurred during discarding.

Implements AMPS.Client.Store.

Reimplemented in AMPS.Client.MemoryPublishStore.

◆ Dispose()

virtual void AMPS.Client.BlockPublishStore.Dispose ( )

inlinevirtual

Performs implementation-defined tasks associated with freeing, releasing, or resetting resources. This method has no effect for the BlockPublishStore class. Publish store implementations that sub-class this class, should override it as needed.

Reimplemented in AMPS.Client.PublishStore, and AMPS.Client.MemoryPublishStore.

◆ flush() [1/2]

void AMPS.Client.BlockPublishStore.flush ( )

inline

Wait for the store to discard everything that has been stored up to the point in time when flush is called, then return.

Implements AMPS.Client.Store.

◆ flush() [2/2]

void AMPS.Client.BlockPublishStore.flush ( int timeout )

inline

Wait for the store to discard everything that has been stored up to the point in time when flush is called, then return. Throw an exception if this is not completed in the number of milliseconds specified by the timeout.

Parameters

timeout The number of milliseconds to wait for the flush.

Exceptions

TimedOutException

Implements AMPS.Client.Store.

◆ getErrorOnPublishGap()

virtual bool AMPS.Client.BlockPublishStore.getErrorOnPublishGap ( )

inlinevirtual

Get if a PublishStoreGapException can be thrown by the Store if there is an attempt to call discardUpTo with a sequence number lower than the last persisted sequence number. This could occur during logon after a failover event if the new server was not current on messages due to being an async replication destination.

Returns: True if the exception will be thrown

Implements AMPS.Client.Store.

Reimplemented in AMPS.Client.MemoryPublishStore.

◆ getHighestUnpersisted()

ulong AMPS.Client.BlockPublishStore.getHighestUnpersisted ( )

inline

Gets the highest unpersisted sequence number.

Returns: The highest unpersisted sequence number.

◆ getLastPersisted()

ulong AMPS.Client.BlockPublishStore.getLastPersisted ( )

inline

Gets the last persisted sequence number

Returns: The last persisted sequence number.

Implements AMPS.Client.Store.

◆ getLowestUnpersisted()

ulong AMPS.Client.BlockPublishStore.getLowestUnpersisted ( )

inline

Gets the lowest unpersisted sequence number.

Returns: The lowest unpersisted sequence number or -1 if no sequence numbers are unpersisted.

◆ growFreeListIfEmpty()

void AMPS.Client.BlockPublishStore.growFreeListIfEmpty ( )

inlineprotected

Ensures that the free list has at least one block available for use.

◆ recover()

void AMPS.Client.BlockPublishStore.recover ( )

inlineprotected

Recovers the state of the BlockPublishStore by reconstructing the used and free lists from the stored blocks in the buffer.

◆ replay()

virtual void AMPS.Client.BlockPublishStore.replay ( StoreReplayer replayer )

inlinevirtual

Implemented to replay unpersisted messages from the stored blocks onto the provided StoreReplayer.

Parameters

replayer The StoreReplayer used to replay undiscarded messages.

Implements AMPS.Client.Store.

◆ replaySingle()

bool AMPS.Client.BlockPublishStore.replaySingle	(	StoreReplayer	replayer,
		ulong	sequence
	)

inline

Implemented to find the unpersisted message with the specified sequence among the stored blocks, and replay it onto the provided StoreReplayer. Checks if the specified sequence is less than or equal to the stored metadata block's sequence number.

Parameters

replayer	The StoreReplayer onto which the block will be replayed.
sequence	The sequence number of the block to be replayed.

Returns: True if the block is successfully replayed, false otherwise.

Implements AMPS.Client.Store.

◆ setErrorOnPublishGap()

void AMPS.Client.BlockPublishStore.setErrorOnPublishGap ( bool errorOnPublishGap_ )

inline

Set if a PublishStoreGapException should be thrown by the Store if there is an attempt to call discardUpTo with a sequence number lower than the last persisted sequence number. This could occur during logon after a failover event if the new server was not current on messages due to being an async replication destination.

Parameters

errorOnPublishGap_ Indicates if the exception should be thrown

Implements AMPS.Client.Store.

◆ setMessage()

void AMPS.Client.BlockPublishStore.setMessage ( Message message )

inline

Used internally by the Client to give the store a Message implementing the correct protocol for the connection. This Message instance is also used for replay operations.

Parameters

message A Message of the correct protocol type.

Implements AMPS.Client.Store.

◆ setResizeHandler()

void AMPS.Client.BlockPublishStore.setResizeHandler ( PublishStoreResizeHandler handler )

inline

Set the resize handler for the publish store. An implementation can call the resize handler in the event that it needs to grow the size of the publish store.

Parameters

handler The resize handler to set

Implements AMPS.Client.Store.

◆ store() [1/2]

void AMPS.Client.BlockPublishStore.store ( Message m )

inline

Stores a message in the BlockPublishStore.

Parameters

m	The message to be stored.

Exceptions

StoreException If an error occurs during message storage.

Implements AMPS.Client.Store.

◆ store() [2/2]

void AMPS.Client.BlockPublishStore.store	(	Message	m,
		Boolean	assignSequence
	)

inline

Internal utility method for storing messages in the BlockPublishStore.

Parameters

m	The messge to be stored.
assignSequence	A boolean flag indicating whether to assign a sequence number to the message.

Exceptions

StoreException If an error occurs during message storage.

◆ unpersistedCount()

long AMPS.Client.BlockPublishStore.unpersistedCount ( )

inline

Returns the count of unpersisted messages in the store. This count represents the number of messages that have been received but not yet persisted.

Returns: The count of unpersisted messages.

Implements AMPS.Client.Store.

The documentation for this class was generated from the following file:

AMPS.Client/BlockPublishStore.cs
